Release Date: 03. Mai 2023

Important Note:

  • Please make sure you read ALL of the information below before installing the software on your device.
  • Please install and test the software in your environment before mass deployment.
  • We encourage you to read and follow our security advisories.

Introduction

The M500 firmware is split into two versions, a specific US version and an European firmware version. This document refers to the European version.

For US, visit DECT M500 Pro-Series Firmware.

Changelog

Changes since release version 1.9.x

Audio tunings:


Audio Profile Update M58

The audio profile of the M58 has been adapted to several language specific use cases.

New features:


#MCP-1911, #MCP-2074, #MCP-4709: Password alert message displayed on idle screen of M55/M58

The M55/M58 idle screen will display a password warning message if the Administrator password and/or User password has not been changed from their default values.



Admin password

User password

Password warning message displayed

Default value

Default value

Admin PW not set

Default value

Changed

Admin PW not set

Changed

Default value

User PW not set

Changed

Changed

(No message)

While the password warning message is displayed, the M55’s Call List soft key and M58’s Redial soft key is replaced by the Info soft key.

To temporarily clear the password warning message and restore the Call List / Redial soft key:

  1. Press Info.
    A pop-up message appears. e.g. “For security reason, please edit the admin password.”
  2. On the M55, press . On the M58, press .
  3. Repeat steps 1-2.

The Call List / Redial soft key is now available.

After two minutes, the password warning message reappears and the Call List / Redial soft key is again replaced by the Info soft key. To permanently remove the password warning message, reset the Administrator password and/or User password as necessary.

#MCP-2916: WebUI - Provisioning Page - Reset Remote Base

Added a new section the WebUI Servicing > Provisioning page under Reset Configuration to reset the remote (secondary) base.

This section is shown in the WebUI of the Primary base only. In the WebUI of the Secondary base, the section is hidden.

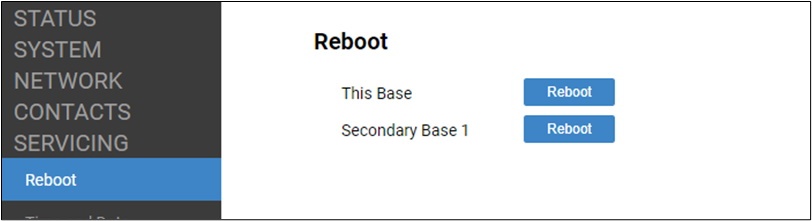

#MCP-2917: WebUI - Reboot Page - Reboot Remote Base

Added a new section in the WebUI Servicing > Reboot page to reboot remote (secondary) base.

This section is shown in the WebUI of the Primary base only. In the WebUI of the Secondary base, the section is hidden.

#MCP-3488: DectStatistic Page - Support Credential

Created a new support login credential to enable access of the DECT statistics page on the WebUI - http(s)://<host:port>/dect_statistics.kl1.

The username is support.

Added the following new parameter:

ParameterDescriptionWUIPUIValuesDefault
profile.support.password

Sets the support password for accessing the DECT Statistics page on the WebUI.

This setting is NON-EXPORTABLE.

Servicing Security Passwords  Support PasswordN/Atext stringsupport

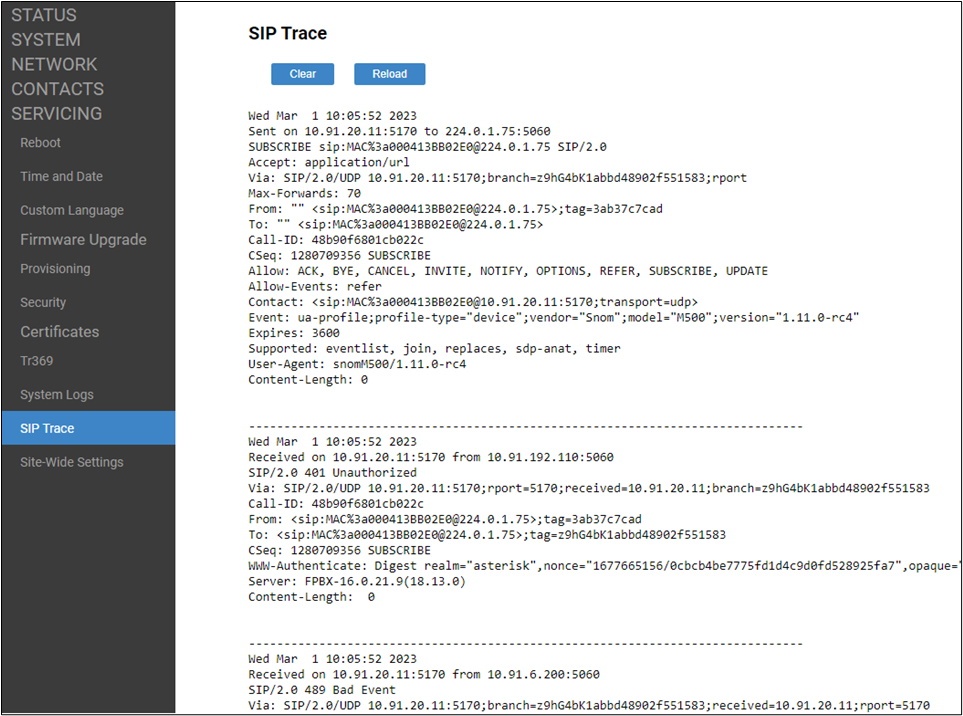

#MCP-4378: Add logging support for SIP packets

Added the Servicing > SIP Trace page to the WebUI to display a log of sent and received SIP packets. You can use the SIP Trace page to analyze and troubleshoot SIP issues.

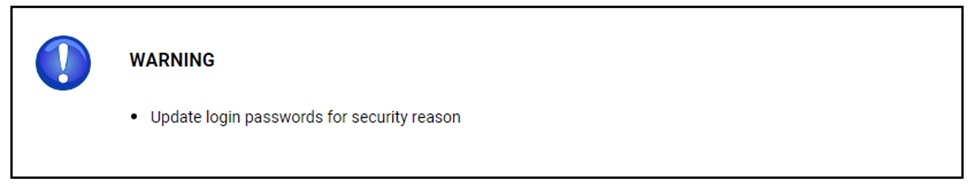

#MCP-4691: Show a WUI reminder for changing default admin/user PW in M500

When the user or admin credential is using default password, a password warning message will be displayed at the top of every WebUI page. This warning message stays until both user and admin passwords are changed.

Improvements and Modifications:

#MCP-1367: WebUI - Status Page - SIP Account

Changed the WebUI Status > System Status page so the Account Status section only displays accounts that are registered.

#MCP-1772: M55/M58 Firmware upgrade - M55/M58 displays countdown warning before upgrade

During a firmware upgrade, while the M55/M58 is receiving the new firmware in the background, a flashing progress icon is displayed on the screen.

When the firmware download is complete, the M55/M58 displays a message with a countdown before installation begins – “New firmware is available. Update is starting in X minutes.”

When the countdown ends, the M55/M58 displays a large hourglass icon on the screen while installing the firmware.

#MCP-3503: Enable DECT Statistic By Default

Changed the default value of the cordless.statistics_enable parameter to 1.

ParameterDescriptionWUIPUIValuesDefault

cordless.statistics_enable

Enable our phone to send DECT statistics to a server via HTTP POST.

N/A

N/A

0 (disabled)

1 (enabled)

1

As a result, the WebUI Cordless Status page displays the columns Range, Signal, Battery, and In Cradle.

#MCP-3879: Enable RTCP-XR by default

Changed the default value of parameter audio.rtcp_xr.enable to 1 (enabled).

ParameterDescriptionWUIPUIValuesDefault

audio.rtcp_xr.enable

Enables or disables reporting of RTCP XR via SIP to a collector server. RTP Control Protocol Extended Reports (RTCP XR) are used for voice quality assessment and diagnostics.

N/A

N/A

0 (disabled)

1 (enabled)

1

#MCP-4456: Wideband call is no longer restricted by number of handsets/desksets registered

Removed a restriction that was imposed for wideband call setup in handset.  When the number of handsets registered is greater than 5, only narrowband call setup is allowed.  The M500, now allows wideband configuration based on the base station  localized limit.  This will allow every device  to setup a wideband call.

#MCP-4624: Air-sync improvement on primary base (dual-cell system)

In a dual cell configuration, set the RPN of secondary base to the preferred RPN list of the primary base when:

  • Base is configured as primary base
  • One secondary base has joined the multicell system.

When the primary base reboots in the middle of some operations, it will search for secondary base immediately to speed up the air-sync process.

#MCP-4660: SysLog Improvement: Support standard severity levels

On the WebUI System Logs page, changed the values of the Log Level drop-down list to standard severity levels: DEBUG, INFO, NOTICE, WARN, ERROR, CRIT, ALERT, EMERG.

Changed the valid values and default value of parameter log.syslog_level:

ParameterDescriptionWUIPUIValuesDefault

log.syslog_level

Sets the log level.
The higher the level, the larger the debug output.

Configuration System Logs Syslog  Log Level

N/A

7—debug
6—informational
5—notice
4—warning
3—error
2—critical
1—alert
0—emergency

4

#MCP-4670: WebUI Translations

Updated the language translation for WebUI text strings for German(de), Spanish(es), French(fr), and Italian(it).

#MCP-4846: User needs to be able to easily dial 911/emergency number when in lock screen (M58 Only)

Disabled the keypad lock feature (press # to lock keypad) on the M58 deskset.

Other Improvements and Modifications

ReferenceDescription

#MCP-3268

Retain LogSettings after mode switch via webUI

#MCP-3539

Add "Base Busy Status" checking before Roaming / Handover

#MCP-3608

Improve intersystem communication to ensure proper broadcast to devices

#MCP-3953

PUI - Speed up account list access, when Account config is already up-to-date

#MCP-3954

PUI - Speed up M55/M58 name list access, when M55/M58 config is already up-to-date

#MCP-3968

Upgrade to OBUSPA 6.0.0

#MCP-4264

SysLog Improvement: Added SysLog messages for troubleshooting Site Formation issues.

#MCP-4265

Syslog Improvement - Added SysLog messages for troubleshooting Base Firmware Upgrade issues.

#MCP-4268

SysLog Improvement: Added SysLog messages for troubleshooting Cordless Upgrade issues.

#MCP-4288

SysLog Improvement: Added SysLog messages for troubleshooting Calling (internal/external) issues.

#MCP-4343

DECT M55/M58 - Use more precise API to check if connection is active after handover

#MCP-4440

M55 low-temp stop Li-ion battery charging

#MCP-4453

DECT M55/M58 - Ignore invalid deregistration request

#MCP-4467

When M55/M58 is out of range, the signal bar should blink in 1 Hz

#MCP-4586

Syslog improvement: Added SysLog messages for troubleshooting DECT Out of Range issues.

#MCP-4725

SysLog Improvement: Disable css debug messages

#MCP-4840

Update User-Agent for M500 for remote XML sync to mimic config and firmware GET requests

Corrections:

#MCP-4274: Off hook hard key defect

During transfer/conference (with or without digits entered):

  • Pressing the Message/Setting/Intercom hard key would end the call unexpectedly.
  • Pressing the Speed Dial List soft key had no function. It should have displayed the speed dial list.

During a ringing incoming call, the Directory/Call History/Redial List/Message soft keys were functioning. They should not be functioning in this state.

#MCP-4301: Bases with IPv6 cannot form site

Corrected an issue where two bases with IPv6 address cannot form site.

Added the following new parameter:

ParameterDescriptionWUIPUIValuesDefault

multicell.multicast_ipv6_address

Multicast IPv6 address to be used for site discovery and site synchronization via multicast.

Once a site is joined by one or more secondary base(s), multicell.multicast_ipv6_address should not be modified.

Configure this setting for a specific base station. This is NOT a site-wide setting.

N/A

N/A

IPv6 address

ff0e:0:0:0:0:0:0:1

#MCP-4370: Improved workaround for call drop detection

Improve call state synchronization between M500 and M55 and M58.  Call synchronization now utilizes call status broadcast messages.

#MCP-4708: Update TR369 Server URL

Changed the default value of parameter tr369.controller.url to iot.snom.com.

ParameterDescriptionWUIPUIValuesDefault

tr369.controller.url

URL of the TR369 controller that our device is connecting to.

Servicing TR369  Controller URL

N/A

URI

iot.snom.com

#MCP-4794: TLS Handshake failure

Device response Handshake Failure when TLS registers to a specific server. Resolved by disabling SIP TLS secure renegotiation via a new parameter.

Added the following new parameter:

ParameterDescriptionWUIPUIValuesDefault

sip_account.x.secure_renegotiation

Enables or disables SIP TLS secure renegotiation (RFC 5746 compliance).

This parameter is only applicable to the TLS connection between the primary base and the server.

This parameter is NON-EXPORTABLE.

N/A

N/A

0 (disabled)

1 (enabled)

1

#MCP-4791: M55/M58 - Auto Reg Success, but keep in Auto Reg screen

When Auto Registration is successful, the M55/M58 remained on the Auto Registration screen, and could not exit to normal Idle screen until timeout and reboot.

Other corrections

ReferenceDescription

#MCP-1160

SRTP call does not work for RTP forwarding

#MCP-2012

Wrong call state after multiple reject of same call

#MCP-2068

WebUI Date Format should not contain YY/MM/DD

#MCP-2556

M55/M58 in Secondary Base Click-To-Dial has no audio

#MCP-2935

M500 cannot make calls when stun server is set.

#MCP-2969

TLS registration failed with Metaswitch server

#MCP-2972

M500 - Out of Range Statistic determination - Not localized

#MCP-3680

Secondary Base with old RFPI after joined site

#MCP-3774

After renaming a Bluetooth device, and then power rebooting the M55/M58, the device name restores to its original name

#MCP-3146

M55/M58 outgoing call does not show Restricted Number CID

#MCP-3183

Added additional corner case protection for firmware upgrade process

#MCP-3213

M500: SIP INFO DTMF method is not recognized on 3CX

#MCP-3255

M55/M58 does not indicate out of range, and never comes back in range after base reboot

#MCP-3646

Corrected rare case of poor audio on one of the device connected to secondary base

#MCP-3793

M500 number of localized handsets is not matching

#MCP-3795

M500 installed handset firmware and installed deskset firmware are not matching

#MCP-3802

Need to reboot M500 to trigger SUOTA updating shared directory on M55/M58 if importing shared directory file while firmware upgrading is in progress

#MCP-3810

1-way audio between secondary HSs - SRTP Enabled

#MCP-3838

M500: HS1 has no TX after local resumed the call - SRTP Enabled

#MCP-3897

Syslog error about namespace when performing factory reset

#MCP-3939

Localized handsets in Base status webpage is incorrect after deregister M55/M58 via PUI

#MCP-3959

M500 LINK LED incorrectly keeps flashing orange after a M55/M58 is registered. If another M55/M58 is registered or the base is rebooted, the LINK LED becomes steady green.

#MCP-3966

No disconnect indication when base is down

#MCP-3980

Abnormal call status after far end transfer a PARK call

#MCP-4006

M500 unresponsive upon making new call when maximum 8 calls has been reached (Happened once)

#MCP-4020

Number of connections decrease after handover

#MCP-4027

PFK LED stops flashing for held call after roaming to another base

#MCP-4031

SuotaManager doesn't stop broadcast while uploading new image to DCX.

#MCP-4038

Transfer call will stay on calling screen if the number is unreachable

#MCP-4091

Multicell: Blind transfer failure ringback not handled properly

#MCP-4101

Page receiver - suppress the disconnect tone when page ends

#MCP-4133

Duplicate parameters in a configuration file should be applied in order from top to bottom of the file. The last duplication should be the one that is applied.

#MCP-4152

After changing account type from Standard to Key Line Emulation, the M55/M58 cannot make an outgoing call

#MCP-4207

M55/M58 does not report SW version after SUOTA Upgrade.

#MCP-4229

M500: Cannot disable HTTPS Secure Browsing and port number via WebUI

#MCP-4231

Wrong RTP sent during re-invite mechanism

#MCP-4252
#MCP-4324

Improved DECT system broadcast channel

#MCP-4257

Some M55/M58 are out of range after base station reboot (Force the M55/M58 lock to the dedicated base station)

#MCP-4271

No audio after secondary M55/M58 call resume when connected to OpenSIPS

#MCP-4273

M55/M58: On the Directory > LDAP > Search page, the search wildcard * fails to return all the results

#MCP-4275

Show M55/M58 local date/time if base does not send/sync date/time to M55/M58

#MCP-4276

M55/M58 does not auto-answer Page ALL

#MCP-4279

Far end emits big white noise after handover from Secondary to Primary

#MCP-4281

The entire call dropped if the barged-in M55/M58 hangs up

#MCP-4291

PFK cannot barge-in to another active call during active call

#MCP-4296

Unable to dial out via Speed dial list on transfer/conference dialer

#MCP-4299

During conference press "END" softkey cannot end the call

#MCP-4303

Incorrect soft key layout in Bluetooth device list

#MCP-4306

Keytone enabled during active call. No keytone should be heard during calling.

#MCP-4307

Do not show handset’s/deskset's own active call in the call list

#MCP-4308

Transfer call list should not show entry with different account

#MCP-4315

M55/M58 turn on LCD Backlight and All LED for 5 seconds every time M55/M58 reboots

#MCP-4317

No audio after resume the same call twice between bases

#MCP-4320

Abnormal PFK status after conferencing with different line

#MCP-4321

Incorrect PFK state if there is an incoming call in outgoing calling state

#MCP-4326

Primary change WebUI language but Secondary does not take effect

#MCP-4327

IPv6: DECT Radio does not turn on Secondary

#MCP-4329

BCSP Host API Memory Leak

#MCP-4335

No softkey on inbound call screen after Transfer

#MCP-4339

Abnormal call screen when blind transfer a hold call

#MCP-4342

Fail to establish call for particular M55/M58

#MCP-4346

Invalid transfer action after answering incoming call during transfer

#MCP-4347

M55/M58 release call if inbound and outbound call at the same time (call collision)

#MCP-4351

IPv6 air sync fail. In the base status webpage, the air sync status is showing as unsync when the base is configured in IPv6.

#MCP-4354

Speed dial list cannot scroll down to the last item

#MCP-4355

Outbound call fails with RingCentrail when TLS is enabled

#MCP-4356

WebUI locked up if power down M55, then keep refreshing cordless status webpage

#MCP-4358

Correct an erroneous tone that may get generated on the device when ring volume is turned off during an incoming call

#MCP-4365

Fail to deliver updated call status to M55/M58 if more than 4 incoming calls arrive at the same time.

#MCP-4366

Call ID does not change after transfer

#MCP-4395

Duplicate tags in XML config causes phone to crash

#MCP-4396

M500 (Realtek RTL8363NB) : PC port VLAN tagging not working on bootup

#MCP-4399

Fail to Replicate Record Created by Manual Registration

#MCP-4402

Voicemail hardkey does not dial out on account 9 and up

#MCP-4404

Pressing hash key will trigger manual registration on "register via" menu

#MCP-4406

Local directory contact and speed dial should have 16 dial line

#MCP-4411

Registering screen pop up for a second after canceling manual registration

#MCP-4412

M55 cannot completely go back to Idle and end call, when put on cradle

#MCP-4427

Incorrect screen displayed when inbound call right after register

#MCP-4436

Cannot show M55/M58 name, if registered M55/M58 + Group > 48

#MCP-4437

LCD Backlight cannot turn off, after timeout from Manual Registration

#MCP-4438

No function on call history "Save" softkey

#MCP-4439

Intercom hard key should be disabled during intercom or paging call

#MCP-4441

Unexpected center key action on manual registration message

#MCP-4444

Bluetooth pairing screen should not be able to dismiss by center key

#MCP-4459

"Call Forward No Answer" PFK label is clipped

#MCP-4469
#MCP-4585

Improve robustness of Wideband handover

#MCP-4475

M500 : LLDP-MED policy change cannot apply without unplug/replug

#MCP-4477

trigger provisioning on secondary when primary receives a check-sync NOTIFY

#MCP-4485

Using Wrong Codec

#MCP-4486

One M55/M58 Failed to update firmware version to Base

#MCP-4547

During paging call, M55/M58 answers the call waiting call, M55/M58 doesn't drop the paging call

#MCP-4553

M55/M58 cannot be paged when it is on Paging menu

#MCP-4562

M55 Miss call option page empty

#MCP-4566

During Call transfer, M55/M58 active call screen frozen, until call release

#MCP-4567

M55/M58 On Secondary fail to update shared directory

#MCP-4573

Sometimes calls would be dropped after handover

#MCP-4578

CallSlotModel - Attended transfer fail at secondary base

#MCP-4583

Missing device MAC address info on the syslog message

#MCP-4584

Early attended transfer failure not handled properly

#MCP-4588

Improve call release message handling

#MCP-4601

Caller name duplicated from caller number

#MCP-4603

Predial Fail to dial, Post-dial normal

#MCP-4607

After import config, WebUI was blank

#MCP-4612

2-way audio turns bad after a min when the Secondary M55/M58 is on the call, resume after another 1 min.

#MCP-4622

After attended transfer fail, no transfer failed splash screen

#MCP-4634

LCD backlight turn off during Hold Call state

#MCP-4640

Removed Network Conference configuration from WebUI

#MCP-4648

M55/M58 cannot receive incoming ring before making outbound call

#MCP-4655

Correct manual account type changes not getting applied properly

#MCP-4661

Correct error handling when DECT location registration is unsuccessful

#MCP-4673

Correct logging message when paging occurs

#MCP-4684

DECT M55/M58 - Forever Search for Base

#MCP-4688

M55/M58 cannot send Firmware version, if call started

#MCP-4694

Does not use PAI/RPID for inbound call

#MCP-4710

Incorrect Reboot Counter

#MCP-4712

Correct race condition that may cause incorrect device configuration when devices are powered up

#MCP-4714

M500: cannot open the wireshark data from webUI system log pcap

#MCP-4719

M55/M58 memory leak found when access call list during active call

#MCP-4736

Correct out of range status from not being reported correctly in some circumstances

#MCP-4767

Dect Statistic failed to pull on some handsets/desksets

#MCP-4768

Correct localization information when performing several handover in succession

#MCP-4781

M55/M58 - Align Active Call Top Row Icons with Idle screen

#MCP-4787

Answering call at primary when it has already been answered at secondary

#MCP-4799

Call waiting call was disappear - Concurrent ringing (INT)

#MCP-4800

M500 call failure with opus/ilbc codecs

#MCP-4801

Correct simultaneous off-hook with multiple devices from being reported correctly

#MCP-4804

Fail To Answer Call Concurrently - M55/M58 frozen in "Incoming Call"

#MCP-4845

M500 Dual base Localized list corruption as a result of M55/M58 reboot

#MCP-4849

Can't perform feature access code when the code include "#" in multicell

M500 base station

File NameFile sizeSHA 256 ChecksumFile name
1.11.155.7 MB

be6b214bff06502cd3eebd180889bf48a221b60e707e45dc618ce583c4851adf

https://downloads.snom.com/M500/M500-1.11.1.img

M55 handset

File NameFile sizeSHA 256 ChecksumSupported languageFile name
1.11.11.5 MB

e8ac46be37e45b205ea579b989b131640b0df1be1a7008f2611073c97231ce6f

English, French, Spanish, German, Italian, Dutch, Greek, Polish

https://downloads.snom.com/M500/M55-1.11.1.img

M58 deskset

File NameFile sizeSHA 256 ChecksumSupported languageFile name
1.11.11.5 MB

a924c529f3d48d15daa28de044ac8f7bca861e55ce36f6ec64705c6e12d95ea3

English, French, Spanish, German, Italian, Dutch, Greek, Polish

https://downloads.snom.com/M500/M58-1.11.1.img
